if in the Other field:

  1. Text

    1. the Text checkbox is checked – the time information beneath the X-axis at the beginning, in the middle and at the end of the screen is displayed
    2. the Text checkbox is unchecked – the time information is disabled
  2. Single stroke signals

    1. the Single stroke signals checkbox is checked – the single stroke signals marks in the form of small red and green dots are displayed
    2. the Single stroke signals checkbox is unchecked – the single stroke signals marks drawing is disabled
  3. H.B. - Emergency signals

    1. the H.B. checkbox is checked – the emergency signals displaying is enabled
    2. the H.B. checkbox is unchecked – the emergency signals displaying is disabled
  4. Location marks

    1. the Location marks checkbox is checked – the position marks' drawing is enabled and the position marks are drawn in form of vertical red dashes along with coresponding position value

      the Location marks checkbox is uchecked – the position marks' drawing is disabled
      WARNING!!! - the position marks are displayed only for time ranges less than 20 minutes

    2. the Single stroke signals checkbox is unchecked – the single stroke signals marks drawing is disabled
  5. Sound recording

    1. if the Voice recording checkbox is checked - there is a possibility of transmitting audio files from the ``AR3c-Audio'' recorder
    2. if this checkbox is unchecked - audio files can't be transmitted

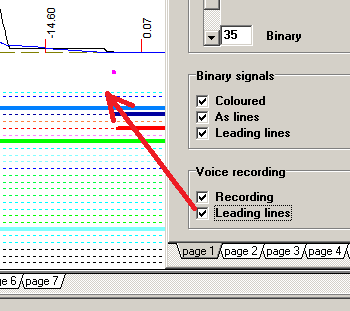

Figure 4.2: Activation of transmitting and playing audio files in Logger program.
