AI8/AI16 card

AI8/AI16 is an optically isolated 8 or 16 analog inputs card with PC/104 bus interface using AR-4c form factor.

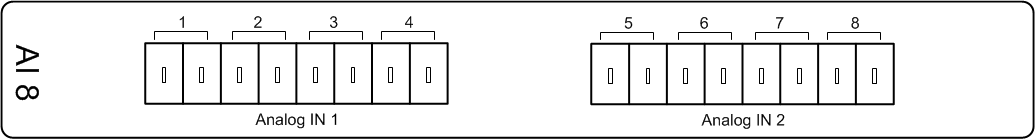

AI8/16 card

Ordering guide

Order Code Bus Interface Form factor Number and versions of inputs
AI8 PC/104 AR4C 4x 10V 4x 20mA
AI16 PC/104 AR4C 8x 10V 8x 20mA

There is a possibility to customize AI8/AI16 card variants to Client's wishes. There are possible changes in inputs standards and antialiasing filter's parameteres.

Documentation

DSP Firmware

The DSP firmware is available under the terms of the GNU General Public License version 2 from http://ftp.podlesie.net/pub/tmos and a git repository. From a git tree it can be compiled using following commands:

$ git clone git://git.podlesie.net/km/tmos.git
$ cd tmos
$ make pommax4_defconfig
$ make

The tmos.hex contains the resulting firmware.
