Cursor Delta

For precise analyzis of differences between signals' values or to estimate the time span to differentiate those values one can use Delta cursor. It has a form of two vertical lines : green and blue and a window where following informations are shown:

  1. Time span between cursor and Cursor Delta set in format:

    1. hour : minute : second : thousands of sec - for data ranges equal or less than one minute,
    2. hour : minute : second : hundreds of sec - for data ranges grater than one minute.
  2. Analog signals values at the beginning and the ending of the selected time period
  3. Differentials of analog signals (if configured for displaying)
A sample window with Cursor Delta is shown on fig. 8.1.

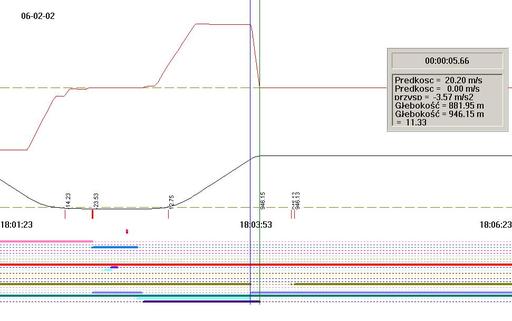

Figure 8.1: A sample LOGGER program window with Cursor Delta
