Communication

It is possible to set communication parameters for each datalogger connected from within LOGGER program. In case of serial link both the serial port number and transmission baudrate can be programmed – fig. 22.1 - A, for the network interface one can set the IP adress and the port of the register – fig. 22.1 - B. To enter communication settings one should use option Communication from menu Options.

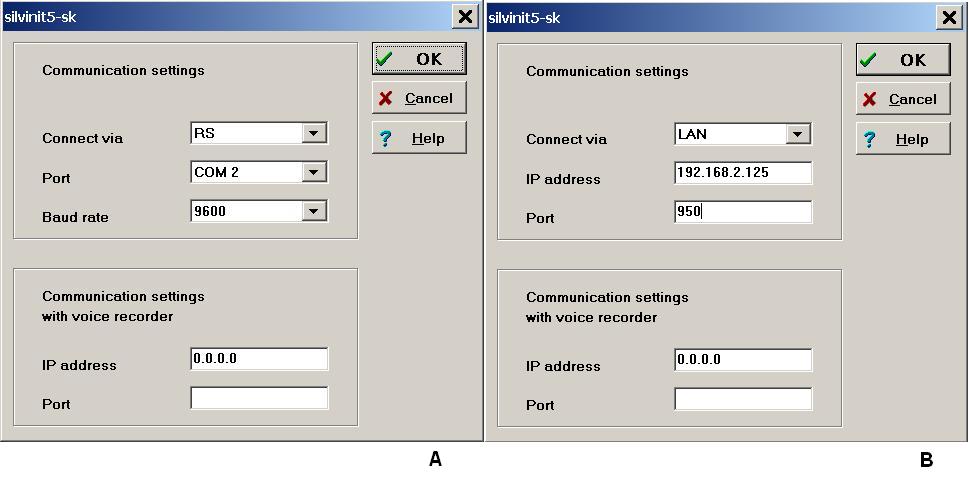

Figure 22.1: Communication settings dialog box
Image l26

WARNING: Don't change the settings made by the service, any casual and unconsidered changing may cause transmission breaks.
