Binary signals layout configuration

After choosing Binary signals tab in the Pages configuration dialog - see fig. 4.4 - the Binary signals configuration panel opens. In the left Accesible signals window a list of all binary signals registered by given AR register is displayed and in the right Signals window a list of displayed on current page binary signals is shown. Between both windows three radio buttons are placed:

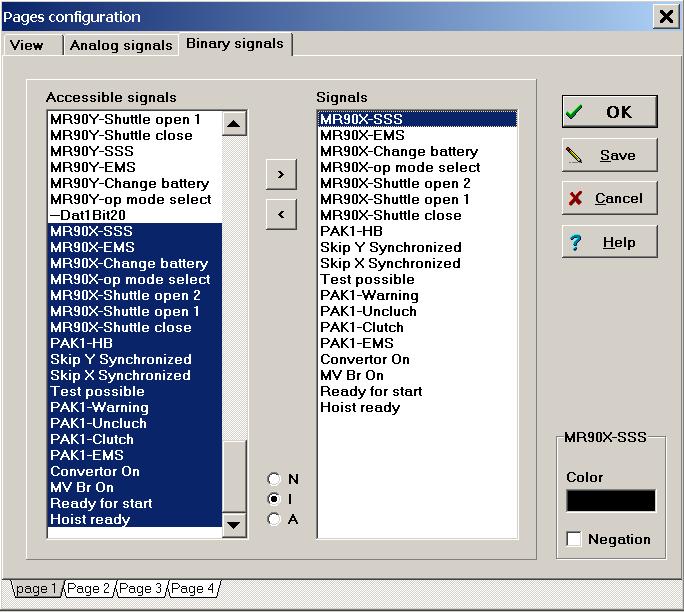

Figure 4.4: Binary signals configuration tab in the Pages configuration dialog
