Analog signals layout configuration

In order to set the analog signals' layout appearance one should click the Analog signals tab of the Pages configuration dialog – see fig.4.3. A configuration panel for analog signals opens. In the left Accesible signals window a list of all analog signals registered by given AR datalogger is displayed and in the right Signals window a list of displayed on current page analog signals is shown. Here it is possible:

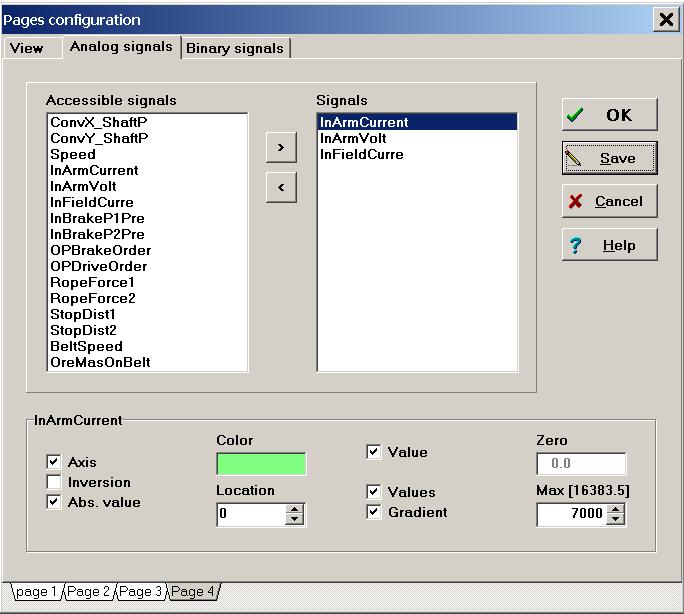

Figure 4.3: Analog signals configuration tab in the Pages configuration dialog

Now it is possible to:

• Define which signals are to be present on current page.
• Define additional displaying parameters separately for each analog signal.
