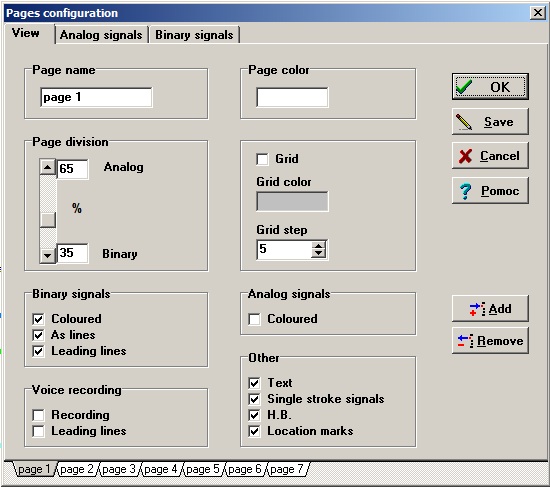

Figure 4.1:
A general window's configuration tab view
|
|
For defining general window's view the View tab should be chosen - see fig.4.1.
Now it is possible to:
- define page name in the Page Name edit box
- set the background window's color
- set the percentage division between analog and binary sections.
- Define grid displaying
- Set the grid color
- Set the grid step by entering in the Grid step edit box a value which means the quantity of grid cells
- Define the mode of binary signals displaying.
- Set other elements in data windows
